MXL Servo Motor Range

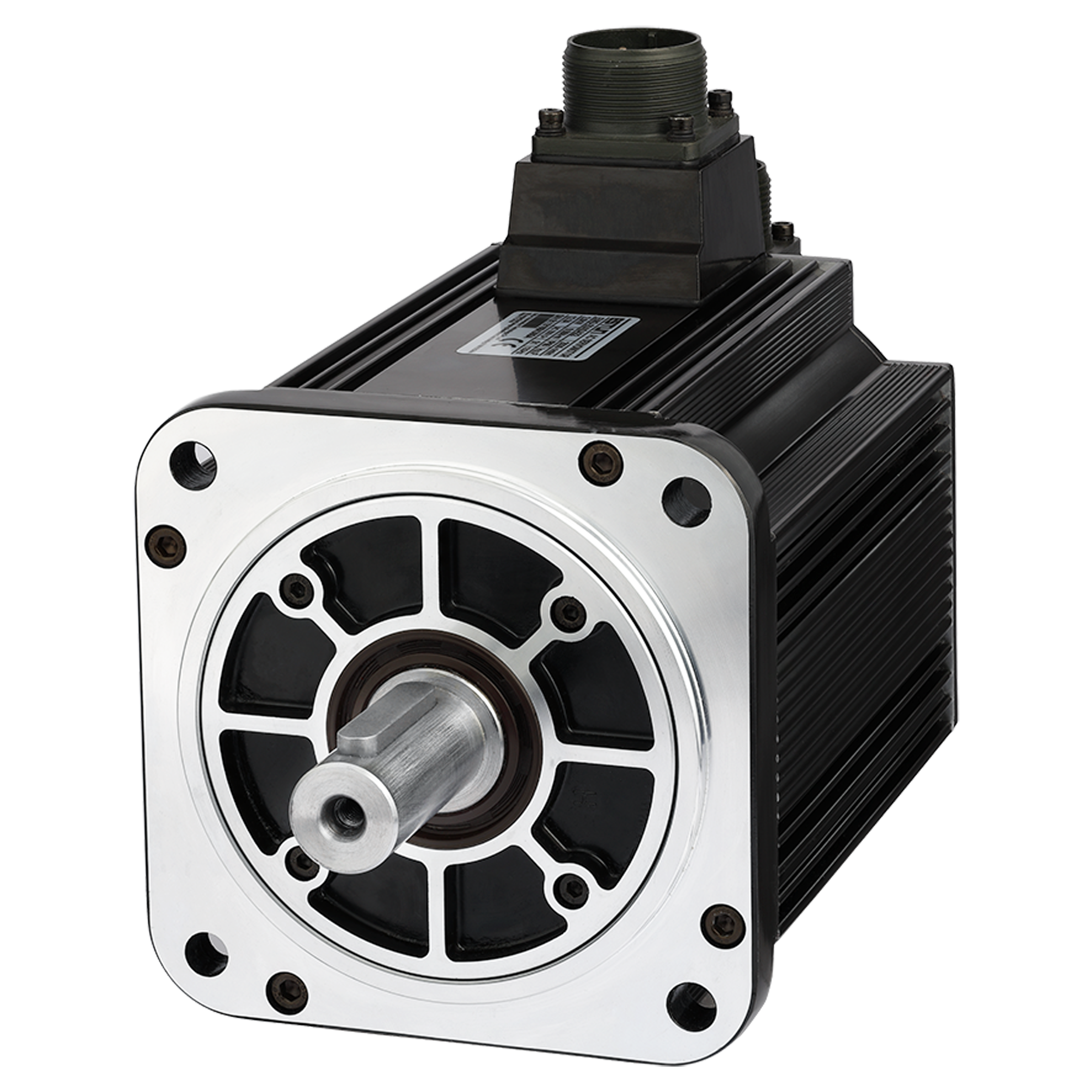

The MXL range of Low Inertia High Speed Servo Motors for the DX Servo Drives 50W - 5kW range.

The MXL family of servo motors include solutions with absolute or incremental encoders, are suitable for application speeds up to 6000 rpm, include variants with an integrated brake.

Low inertia allows very fast response times and these motors develop a very high torque despite their small size. In combination with our servo drives, they are ideal for applications with high dynamic responses and fast and precise positioning.

Our servo drive systems can be used in a wide range of applications thanks to their high performance, available power range and compact dimensions.

Trio Support & Forum

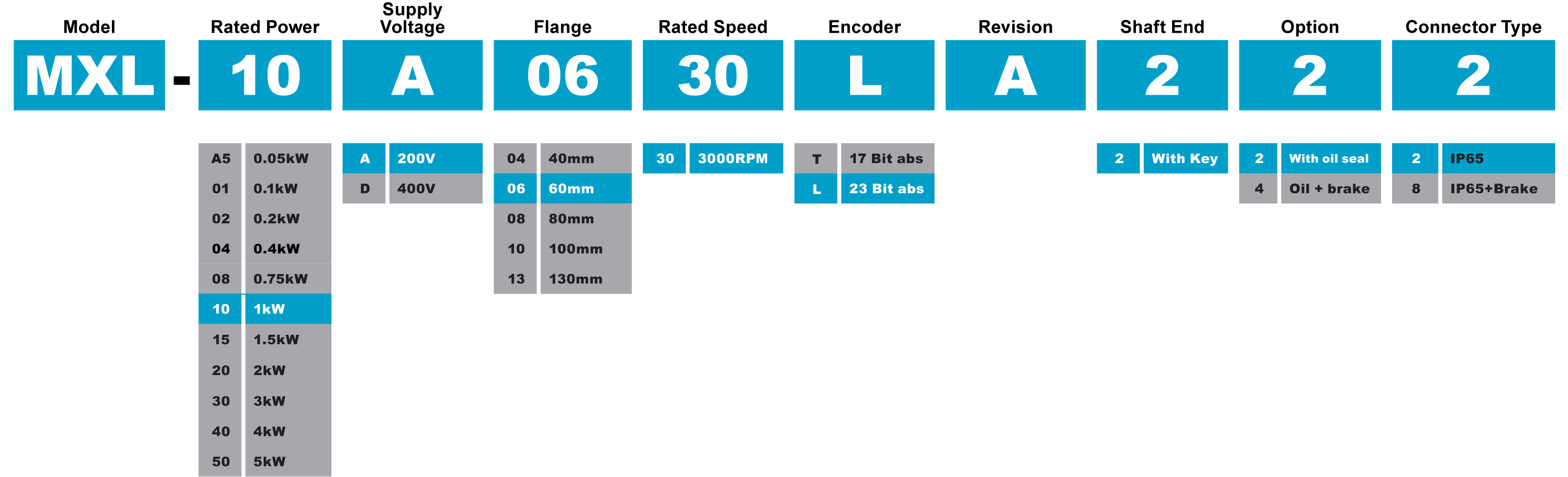

MXL

Highlights

  • 20-bit incremental or 23-bit absolute encoder option
  • IP65 rated
  • Oil seal as standard
  • Optional brake
MXL
  Flange Side   Key
Power MOTOR #
(see ref)		 L LL LR LE LF LC LA LB lz S Tap x Depth QK W T U Q
50W A5AL 87.5 (121) 62.5 (96) 25 2.5 5 40 46 30 4.3 8 M3x 6 14 22 3 3 22.5
100W 01AL 103.5(137) 78.5 (112) 25 2.5 5 40 46 30 4.3 8 M3x 6 14 22.5 3 3 22.5
100W 01AT 113.5 (147) 88.5(122) 25 2.5 5 40 46 30 4.3 8 M3x 6 14 22.5 3 3 27
200W 02AL 108 (137) 78 (102) 30 3 7 60 70 50 5.5 14 M5x 12 20 27 5 5 27
200W 02AT 126.5 (155.5) 96.5 (125.5) 30 3 7 60 70 50 5.5 14 M5x 12 20 27 5 5 37
400W 04AL 129 (158) 99 (128) 30 3 7 60 70 50 5.5 14 M5x 12 20 27 5 5 37
400W 04AT 147.5 (176.5) 117.5 (146.5) 30 3 7 60 70 50 5.5 14 M5x 12 20 27 5 5 27
750W 08AL 151 (184) 111 (144) 40 3 8 80 90 70 6.6 19 M6x 12 25 37/35 6 6 27
750W 08AT 167.5 (200.5) 127.5 (160.5) 40 3 8 80 90 70 6.6 19 M6x 12 25 37 6 6 37
1kW 10AL 165 (198) 125 (158) 40 3 8 80 90 70 6.6 19 M6x 12 25 37 6 6 37
1kW 10AT 185 (214.5) 141.5 (175.5) 40 3 8 80 90 70 6.6 19 M6x 12 25 37 6 6 37
MXL
MXL
MXL
MXL
MXL
MXL
MXL

A: Continuous Working Area B: Repeatedly Working Area

MXL
  Flange Side   Key
Power MOTOR #
(see ref)		 L LL LR LE LF LC LA LB lz S Tap x Depth QK W T U Q
1.5kW 15A/15D 210 (240) 165 (195) 45 3 10 100 115 95 7 24 M8x 16 36 40 8 7 40
2kW 20A/20D 230 (260) 185 (215) 45 3 10 100 115 95 7 24 M8x 16 36 40 8 7 40
3kW 30D 257 (298.5) 194 (226.5) 63 6 12 130 145 110 9 28 M8x 16 54 55 8 7 55
4kW 40D 284 (316.5) 221 (253.5) 63 6 12 130 145 110 9 28 M8x 16 54 55 8 7 55
5kW 50D 324 (356.5) 261 (293.5) 63 6 12 130 145 110 9 28 M8x 16 54 55 8 7 55
MXL
MXL
MXL
MXL
MXL
MXL

A: Continuous Working Area B: Repeatedly Working Area

Cables for MXL Motor Range 50W - 1kW

Incremental Encoder Cable

EC3S-I1724-RX-nn

cables

Absolute Encoder Cable

EC3S-A1724-RX-nn

cables

Power Cable No Brake

EC3P-N8718-RX-nn

cables

Power Cable With Brake

EC3P-B8718-RX-nn

cables
Cables for MXL Motor Range 1.5kW - 3kW

Incremental Encoder Cable

EC3S-I1924-RX-nn

cables

Absolute Encoder Cable

EC3S-A1924-RX-nnnn

cables

Power Cable No Brake

EC3P-N9314-RX-nn

cables

Power Cable With Brake

EC3P-B9314-RX-nn

cables
Cables for MXL Motor Range 4kW - 5kW

Incremental Encoder Cable

EC3S-I1924-RX-nn

cables

Absolute Encoder Cable

EC3S-A1924-RX-nn

cables

Power Cable No Brake

EC3P-N9319-RX-nn

cables

Power Cable With Brake

EC3P-B9319-RX-nn

cables

Cable Key

The XX at the end of the CABLE code represents the cable length:
E.g.; EC3S-I1724-10 = 10 metre cable
valid lengths are: 1M5, 05, 10, 15, 20
All lengths are in Metres
Note:

All ‘RX’ cable are flexible and suitable for drag chain applications.
Key to Abbreviations:
inc: incremental
abs: absolute
std: standard
-->
Guides
Trio Support & Forum Knowledge base and help forum
Videos (log in) Videos to get you started
MX Motor System Brochure Including MXM, MXL Motor and cable Range
Certificates
EU Declaration All Models
UL Listing Please insert E518714 UL File Number in the search box.
CAD Data
Drawings are available in the following formats: DXF, IGES, DWG and STEP. These files are included in the Zip files for each motor.
Download Zip file (log in) CAD data for various MXL motors
▴
