MXM Servo Motor Range

The MXM range of Medium Inertia Medium Speed Servo Motors for the DX4 Servo Drive 1kW - 3kW range.

The MXM family of servo motors include solutions with absolute or incremental encoders, are suitable for application speeds up to 3000 rpm, include variants with an integrated brake.

Medium inertia allows fast response times and these motors develop a very high torque despite their small size. In combination with our servo drives, they are ideal for applications with high dynamic responses and fast and precise positioning.

Our servo drive systems can be used in a wide range of applications thanks to their high performance, available power range and compact dimensions.

Trio Support & Forum

EMG

Highlights

  • 20-bit incremental or 23-bit absolute encoder option
  • IP65 rated
  • Oil seal as standard
  • Optional brake

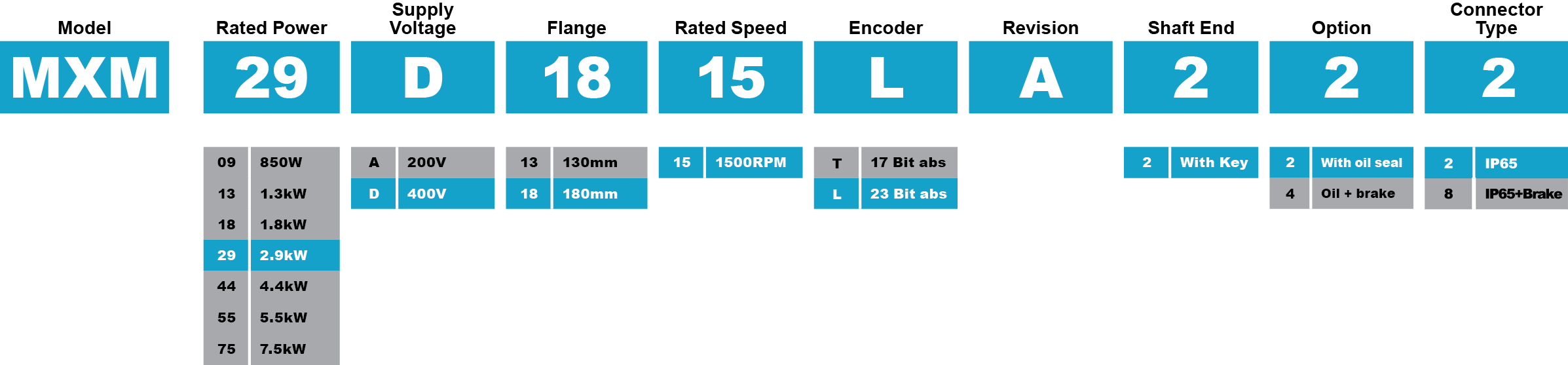

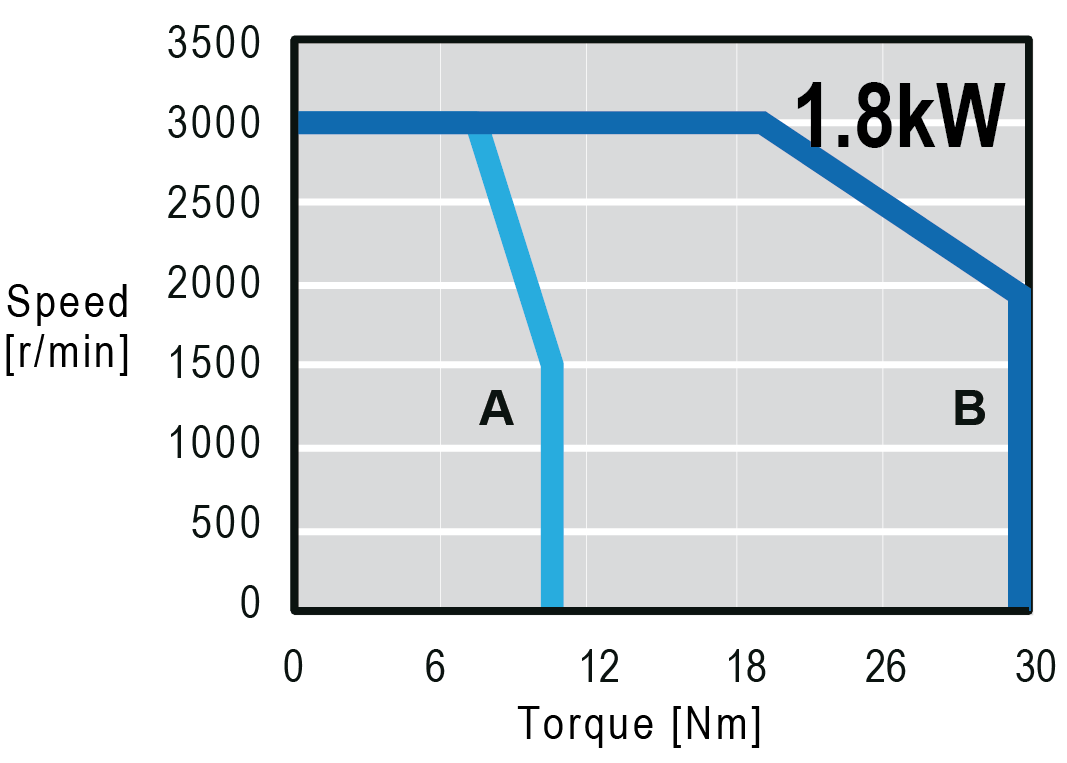

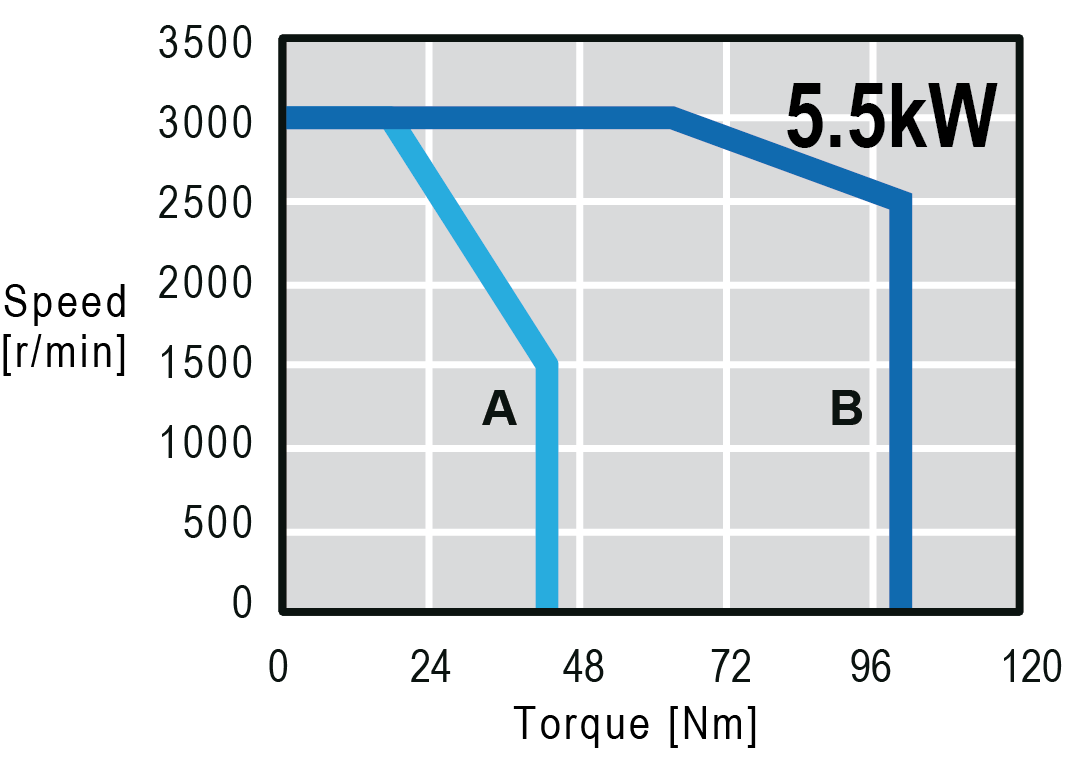

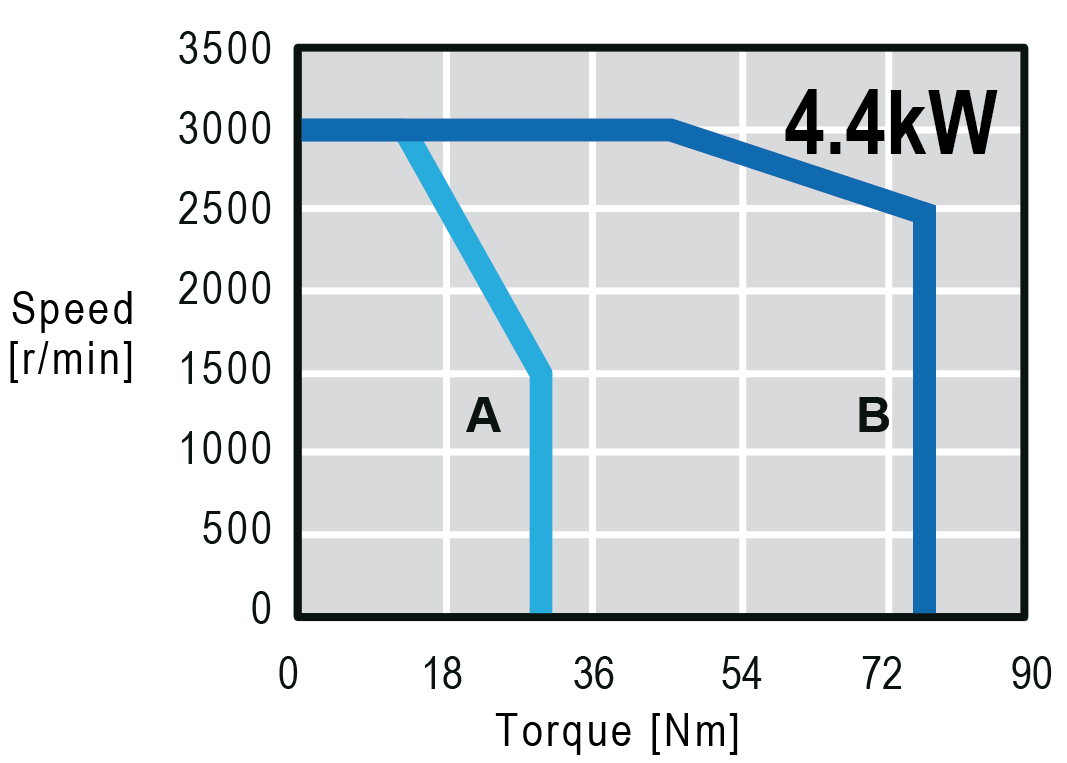

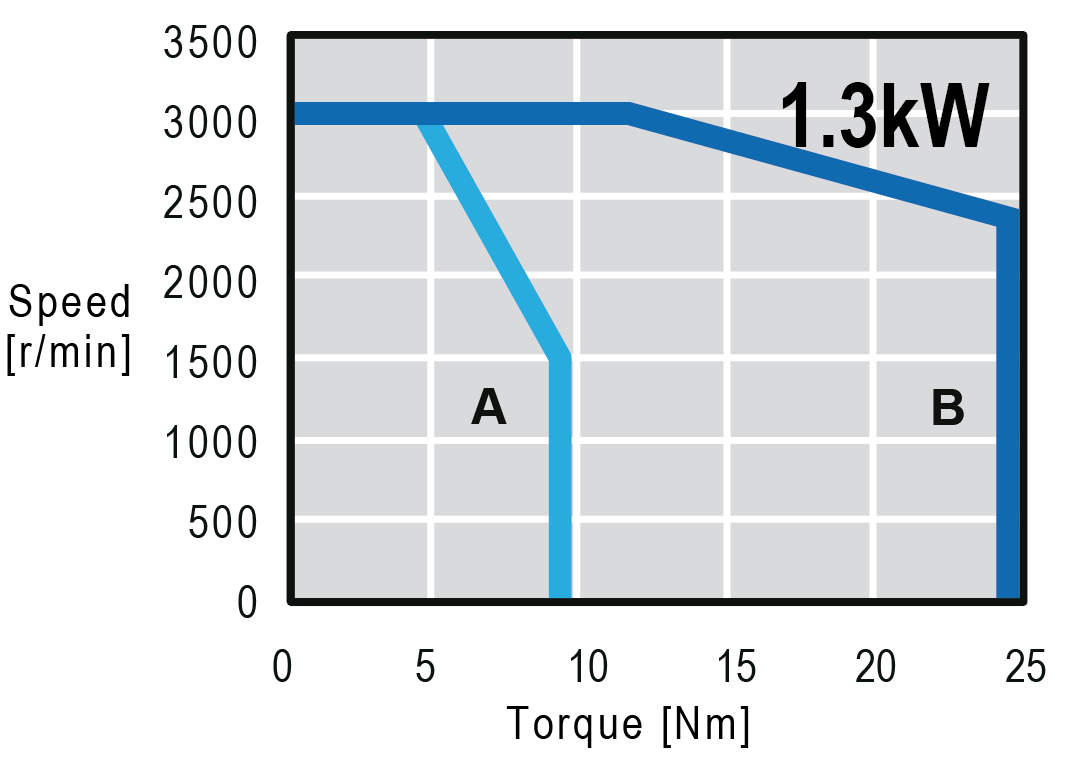

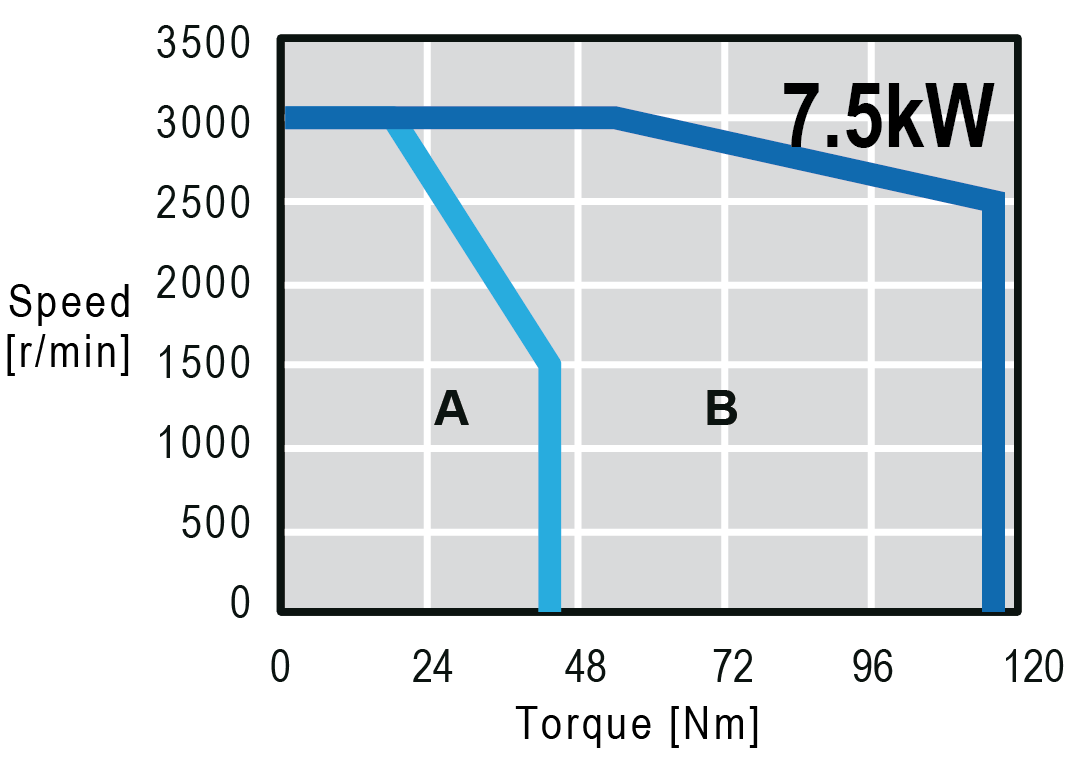

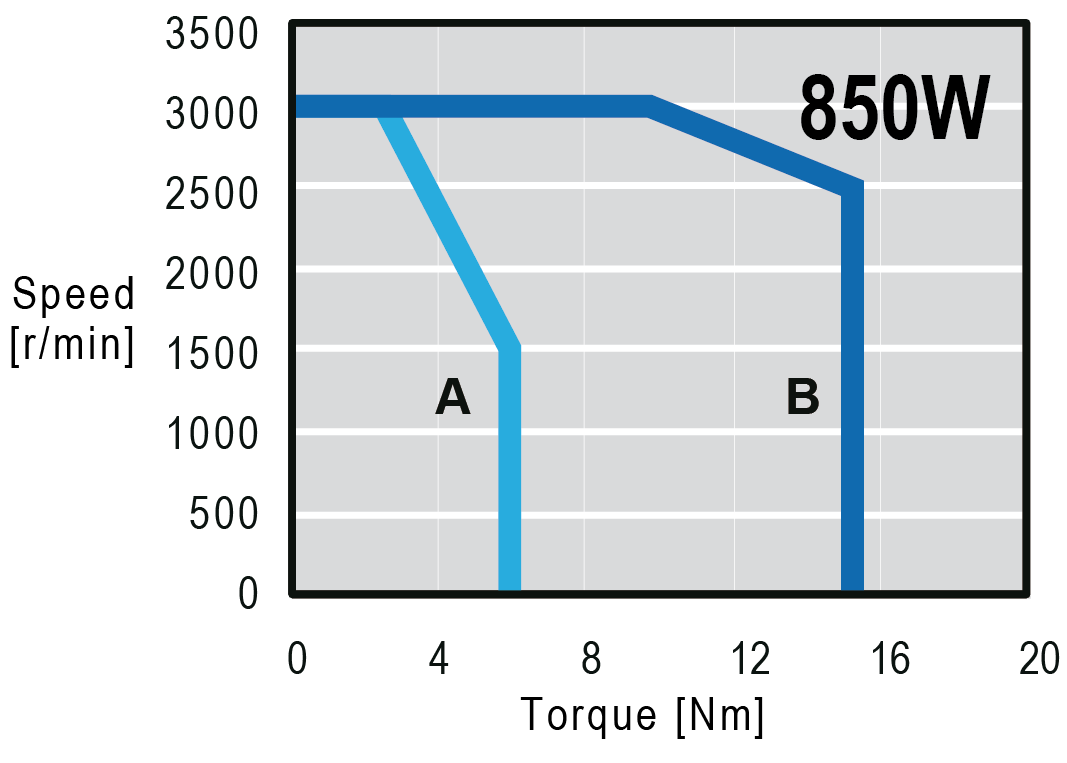

Motor # Reference

Rated Power Supply Voltage Flange Rated Speed Encoder Revision Shaft End Option Parts Connector Type
10 : 1kW A  : 200Vac 13 : 130mm 20: 2000rpm F : 20-bit enc A : - 2 : With Key 2 ; With Oil Seal 3 : On Motor
15 : 1.5kW   18 : 180mm   L : 23-bit abs B : -   4 : With Oil Seal With Brake
20: 2kW         D : -
30 : 3kW
  Flange Side   Key
Power MOTOR #
(see ref)		 L LL KB1 KB2 KL1 KL2 LR LE LF LC LA LB lZ S Tap x Depth QK QL W T U
1kW 10A1320 203
(245.5)		 148
(190.5)		 80
(103.2)		 131.5
(174)		 117 60.5 55 4 12 130 145 110 9 22 M6 X 20 40 5 8 7 4
1.5kW 15A1320 225
(267.5)		 170
(212.5)		 102
(125.5)		 153.5
(196)
2kW 20A1320 247
(289.5)		 192
(234.5)		 124
(147.2)		 175.5
(218)
3kW 30A1820 307
(378)		 228
(299)		 143 203
(274)		 140 79 79 3.2 18 180 200 114.3 13.5 35 M8 X 16 55 6 10 8 5
DX4
DX4
Cables for MXM Motor Range 1kW - 2kW

Incremental Encoder Cable

EC3S-I1324-XX

cables

Absolute Encoder Cable

EC3S-A1324-XX

cables

Power Cable No Brake

EC3P-N9314-XX

cables

Power Cable With Brake

EC3P-B9314-XX

cables
Cables for MXM Motor Range 3kW

Incremental Encoder Cable

EC3S-I1424-XX

cables

Absolute Encoder Cable

EC3S-A1424-XX

cables

Power Cable No Brake

EC3P-N9413-XX

cables

Power Cable With Brake


Brake cable for the 3kW MXM motor is separate to the motor power cable, the brake cable connector is available as part number MC10-SP2S-S

Cable Key

The XX at the end of the CABLE code represents the cable length:
E.g.; EC3S-I1724-10 = 10 metre cable
valid lengths are: 1M5, 05, 10, 15, 20
All lengths are in Metres
Note:

All ‘RX’ cable are flexible and suitable for drag chain applications.
Key to Abbreviations:
inc: incremental
abs: absolute
std: standard
Guides
Trio Support & Forum Knowledge base and help forum
Videos (log in) Videos to get you started
DX4 System Brochure DX4 System Brochure Including MXM and MXL Motor Range
Certificates
UL Listing Please insert E518714 UL File Number in the search box.
CAD Data
Drawings are available in the following formats: DXF, IGES, DWG and STEP. These files are included in the Zip files for each motor.
Download Zip file (log in) CAD data for various MXM motors
▴
