PC-MCAT 64
P760 (2 - 64 Axes)

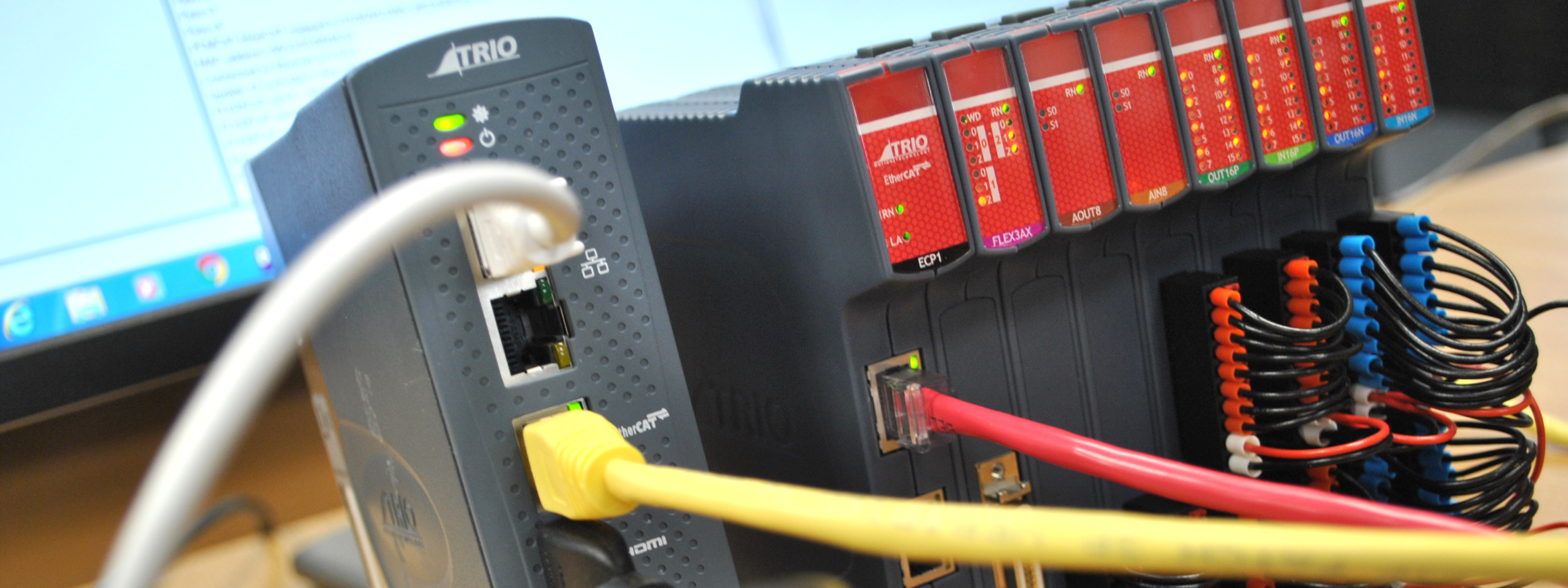

Trio’s PC-MCAT 64 is an innovative "Motion + PC Solution". A powerful quad core Intel Atom processor is used to drive both a high performance motion controller and a compact PC that can run user applications under Windows. The PC-MCAT software uses a real-time extension to allow both Windows and the motion controller to run directly on their own processor cores.
Highlights
- Motion + PC Solution for Automation Machinery
- Fanless compact PC with E3845 Quad Core Atom Processor at 1.91 Ghz
- Powerful up to 64 Axis EtherCAT Based Trio Motion Coordinator
- RTX64 Real Time Extension to allow Motion + Windows Running Directly on Their Own Processor Cores
- Plug and Play EtherCAT Configuration Expandable Support for Servo Drives, I/O and Devices From Over 100 Manufacturers
- Programmable In Easy TrioBASIC, built-in IEC 61131 or PC based Programming Languages Such As "C"
- 4 GByte RAM + 64 GByte Upgradable SSD
- Built-in GBit Ethernet Port For Vision Cameras
Plug and Play
The motion controller’s own dedicated EtherCAT master Ethernet port can launch data packets with less than 1 µsec of jitter. The 1.91GHz Atom processor is paired with 4 GBytes of RAM and a high speed 64 GByte upgradable SSD to give sufficient PC performance for many machine types.
HDMI Output
PC-MCAT is especially suitable where a machine type needs the software and hardware facilities of a PC paired with a powerful 64 axis Motion Coordinator. The HDMI port can be used to drive high resolution displays for sophisticated operator interfaces.
Vision
The large 64 GByte SSD drive can hold vast amounts of machine data and recipes. Two GBit Ethernet ports are built into the PC-MCAT. These can be used for factory communications or connecting vision camera(s) whose data can be processed directly on the PC cores.

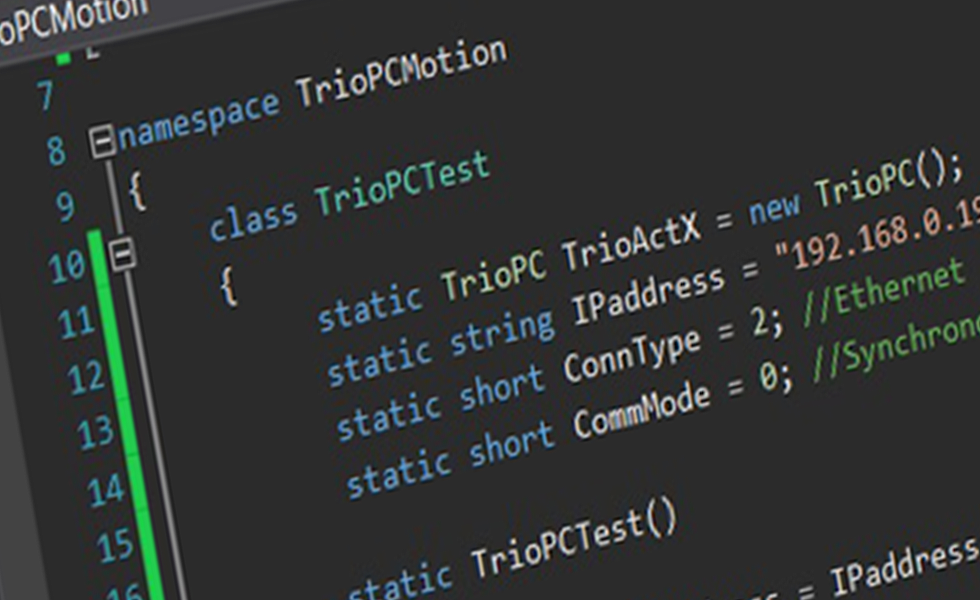

Program Your Way
A machines PC applications can communicate with the Trio Motion Coordinator running on its dedicated processor core using fast shared memory. Machine control sequences can either be made in multi-tasking TrioBASIC / IEC61131 of the Motion Coordinator or can be written as a PC application (for example in "C") sending motion + I/O requests through to the Motion Coordinator. Trio's Motion Perfect v4 application development tool can be run directly on the PC-MCAT or remotely on a laptop via Ethernet..
 |
|---|
| Product | P760 PC-MCAT-64 |
|---|---|
| Description | 2 - 64 EtherCAT Axis Fanless PC + Motion Controller |
| Name | PC-MCAT-64 |
| PCode | P760 |
| Status | Supported |
| Configuration | P760 PC-MCAT-64 |
|---|---|
| Axis 0 | |
| Axis 1 | |
| Axis 2 | |
| Axis 3 | |
| Axis 4 | |
| Axis 5 | |
| Axis 6 | |
| Axis 7 |
| Axes | P760 PC-MCAT-64 |
|---|---|
| Max axes | 64 |
| Max networked axes | 64 |
| Max virtual axes | 64 |
| Max discrete wired axes | 0 |
| Performance | P760 PC-MCAT-64 |
|---|---|
| Cores | 4 |
| Processor | Intel Atom E3845 Quad Core |
| Clock frequency | 1910 MHz |
| Maths precision | IEEE 457 Double |
| Position register precision | 64 bit |
| Execution benchmark | 0 lines/ms |
| Real-time clock | Yes |
| Flash memory | 32 x 16000 values |
| User memory | 640 MB |
| Table memory | 512000 values |
| Min expected flash memory life (normal use) | 0 years |
| Maximum VR variables | 4096 |
| Maximum servo period | 2000 µs |
| Minimum servo period | 125 µs |
| Maximum encoder input frequency | 0.000 MHz |
| Maximum stepper output frequency | 0.000 MHz |
| Drive interfaces | P760 PC-MCAT-64 |
|---|---|
| Auxilliary axis | No |
| EtherCAT | Yes |
| Hydraulic | No |
| Piezo | No |
| Panasonic RTEX | No |
| SERCOS | No |
| Servo | No |
| SLM | No |
| Step & direction | No |
| Communications | P760 PC-MCAT-64 |
|---|---|
| Anybus | No |
| Bluetooth | No |
| CANopen | No |
| CC-Link | No |
| DeviceNet | No |
| Ethernet | Yes |
| EthernetIP | Option |
| Hostlink | Option |
| MODBUS-RTU | Option |
| MODBUS-TCP/IP | Option |
| Profibus | No |
| ProfiNet | No |
| RS232/RS485 | No |
| USB 1.1 | No |
| Encoder ports | P760 PC-MCAT-64 |
|---|---|
| Feedback input | No |
| Incremental (A+B) output | No |
| Pulse & direction output | No |
| Reference input | No |
| SSI Absolute Input | No |
| EnDat Absolute Input | No |
| Tamagawa Absolute Input | No |
| BiSS Absolute Input | No |
| Internal I/O | P760 PC-MCAT-64 |
|---|---|
| +/-10V analogue outputs | 0 |
| Analogue output precision | 12 bits |
| Analogue Inputs (0-10V) | 0 |
| Analog input precision | 12 bits |
| Digital Bidirectional I/O (24V) | 0 |
| Digital Inputs (24Vdc) | 0 |
| Digital outputs (24Vdc) | 0 |
| Registration inputs | 0 |
| Registration speed | 1 µs |
| Watchdogs | 0 |
| Watchdog rating | n/a |
| External I/O | P760 PC-MCAT-64 |
|---|---|
| +/-10V analogue outputs | 16 |
| Analogue output precision | 12 bits |
| +/-10V analogue inputs | 32 |
| Analogue input precision | 12 bits |
| Digital I/O points | 1024 |
| Programming | P760 PC-MCAT-64 |
|---|---|
| Trio BASIC | Yes |
| DXF in | Yes |
| G-Code | Yes |
| HPGL | Yes |
| IEC61131 | Yes |
| Kinematic | Option |
| Maximum programs | 32 |
| Maximum tasks | 22 |
| Software | P760 PC-MCAT-64 |
|---|---|
| Motion Perfect version | 4 |
| Expansion | P760 PC-MCAT-64 |
|---|---|
| Expansion module type | None |
| Maximum modules | 0 |
| Memory card | None |

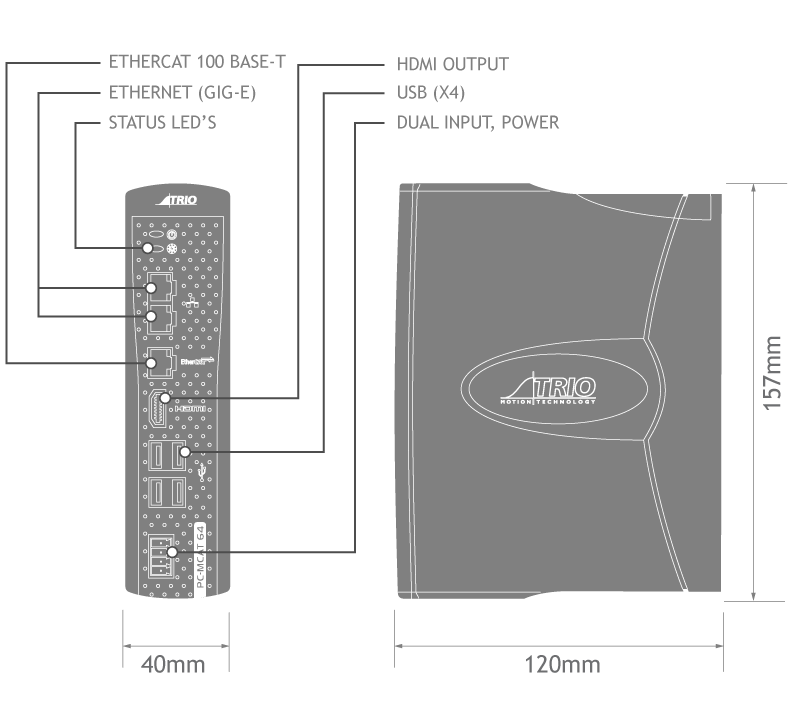

| Physical | P760 PC-MCAT-64 |
|---|---|
| Maximum operating temperature | 55 °C |
| Minimum operating temperature | 0 °C |
| Mount | Panel |
| Depth | 120.0 mm |
| Height | 157.0 mm |
| Width | 40.0 mm |
| Weight | 432 g |
| Power | P760 PC-MCAT-64 |
|---|---|
| Supply current | 0 mA |
| Supply tolerance | +-20% |
| Supply voltage | 24 V |
| Certification | P760 PC-MCAT-64 |
|---|---|
| CE | Yes |
| RoSH | Yes |
| UL | Yes |
Axis Configuration Key
| Core functionality | |||
|---|---|---|---|
CORE AXES – can be configured in software as pulse and direction outputs with stepper or servo drives. They can also be configured for incremental encoder feedback. Core functionality is a set of ATYPEs (Axis TYPEs) that are available on all controllers. They are based on pulse outputs and incremental encoder feedback. |
|||
| ATYPE | Description | ||
| 43 | Pulse and direction output with enable output | ||
| 45 | Quadrature encoder output with enable output | ||
| 63 | Pulse and direction output with Z input | ||
| 64 | Quadrature encoder output with Z input | ||
| 76 | Incremental encoder with Z input | ||
| 78 | Pulse and direction with VFF_GAIN and enable output 1 | ||
| Extended functionality | ||||
|---|---|---|---|---|
EXTENDED AXES – in addition to the Core functionality these axes can also be configured for absolute encoders and closed loop servos (requires voltage output). Only axes marked as AS have an analogue output and can be used for closed loop control. |
||||
| ATYPE | Description | |||
| 30 | Analogue feedback Servo | |||
| 44 | Incremental encoder Servo with Z input | |||
| 46 | Tamagawa absolute Servo | |||
| 47 | Endat absolute Servo | |||
| 48 | SSI absolute Servo | |||
| 60 | Pulse and direction feedback Servo with Z input | |||
| 77 | Incremental encoder Servo with enable output | |||
| 92 | Biss absolute servo | |||
 Specification |
|
|---|---|
| Speed | 100Mbps |
| Physical Layer | 100BASE-TX full duplex (IEEE 802.3) |
| Cable | Shielded Twisted Pair (TIA/EIA-568B CAT5e) |
| Topology | Line, tree or star (1) |
| Isolation | Pulse transformer with common-mode choke |
| Connector | RJ45 |
| Cable Length | 100m max between nodes |
| Cyclic period | 125µsec (Flex-X Nano, Flex-6 Nano, MC6N) 250µsec (MC664-X) 500µsec, 1000µsec, 2000µsec or 4000µsec (MC664, Flex-6 Nano, Flex-X Nano, MC6N) |
| Synchronisation | Distributed Clocks technology. Jitter < 1 µsec |
| Protocol | CoE, SoE (2) |
| Number of Axes | 32 (MC4N) 64 (MC464+P876) 128 (MC664-X) 64 (PC-MCAT-64, PC-MCAT-2) 64 (Flex-X Nano, Flex-6 Nano, MC6N) |
| Number of Nodes | 128 slave nodes maximum |
| Motion modes | Cyclic Synchronous Position, Cyclic Synchronous Velocity, Cyclic Synchronous Torque |
| Parameter transfer | CoE Object read/write. SoE IDN read/write |
| Input/Output | Up to 1024 input bits and 1024 output bits |
| (1) Tree and star require the use of EtherCAT switches. (2) CanOpen application protocol over EtherCAT. (CoE) Servo drive profile according to IEC 61491 over EtherCAT. (SoE) |
|
