HMI

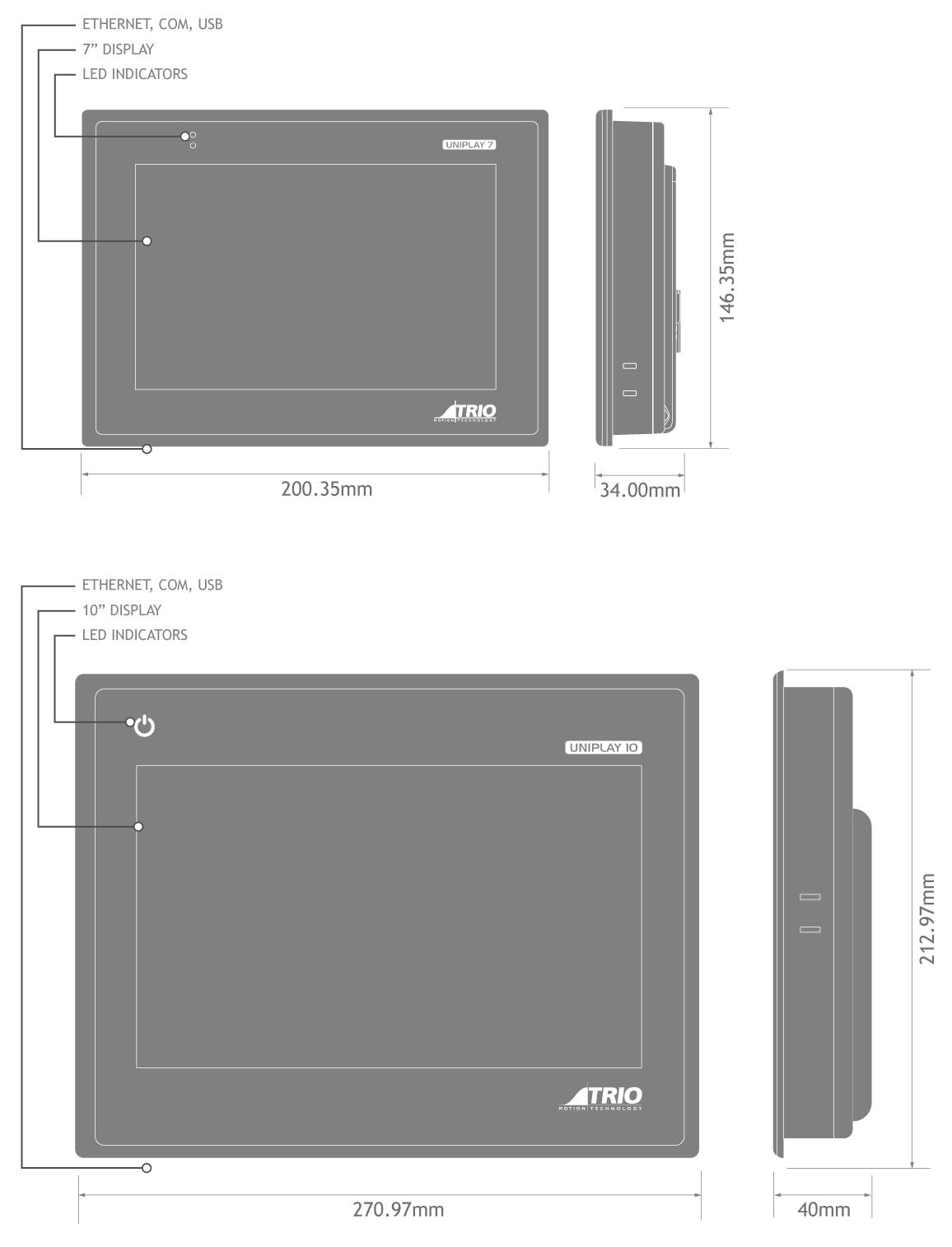

P843 (7") | P844 (10")
Previous Generation : Suggested Alternative : New HMI
Not recommended for new projects!
Trio's unique UNIPLAY HMI system is a revolutionary way to make operator interfaces better, easier and more secure! The UNIPLAY series boasts a 7" and 10" colour display.
Highlights
- Single point HMI programming inside Motion Perfect v4
- Centralised program / HMI screen storage in Motion Perfect v4 project
- Easily display any controller data type + graphics
- No need to separately program HMI panel
- 7" and 10" UNIPLAY sealed touch panels available

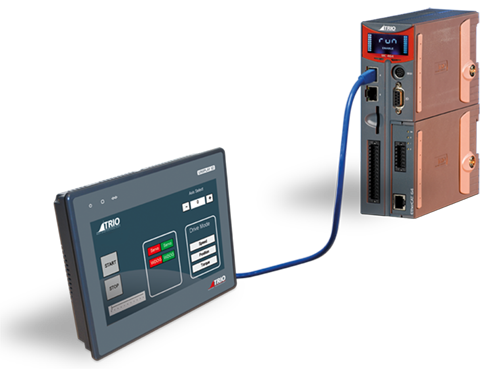

- Connect up to 2 HMI's to your Motion Coordinator
- Ethernet connection reduces wiring
Plug and Play
The UNIPLAY range has built-in power isolation technology making it more reliable in noisy environments.
No additional software is required; Uniplay HMI's work with the Trio 4xx and above Motion Coordinator range. Motion Perfect is used to create operator HMI screens which are transferred to the UNIPLAY HMI by the Motion Coordinator at runtime.
